LCR_EST_FREQ Meter

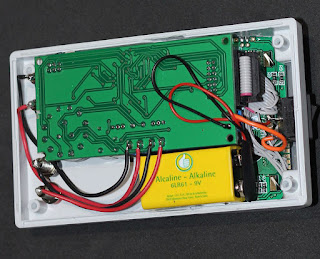

Just waiting for a couple of kits to come through to me a through hole and a SMD version. Both will have a 2x16 LCD and I suspect I will mount them like this.



I have some of the grey slope front meter boxes (from an Australian trip when bought some from Jaycar)

More details http://members.upcweb.hu//lethanh.hung/LCFESRmero/en/index.htm

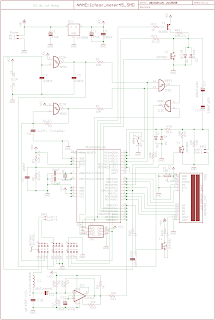

More images... thanks to Dr Le Hung for permission.



the TH version single side PCB can be made with information found in the zip file download here: http://members.upcweb.hu//lethanh.hung/LCFESRmero/en/documentation.htm
